Models


10HR

Capacity(Ah)

 Dimensions(Approx.mm)

Weight

(Approx.

kg)

(Without Acid)

Acid

 Volume

(Approx.

ℓ)

Weight

(Approx.kg)

(With Acid)

Charging

Current

(A)

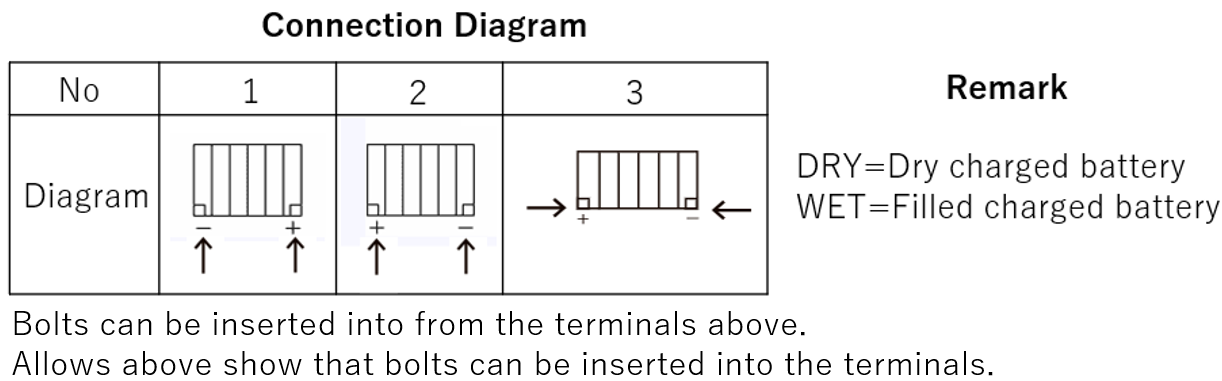

Connection
Diagram

No.



Remark




Length Width Height
FT4L-BS 3 113 70 85 1.2 0.18   0.4 1 DRY
    1.4 WET
FTX4L-BS 3 113 70 85 1.2 0.18   0.4 １ DRY
    1.4 WET
FTH4L-BS 3 113 70 85 1.3 0.18   0.4 １ DRY
    1.5 WET
FTZ4V 3 113 70 85     1.4 0.4 １ WET
FTZ5S 3.5 113 70 85     1.6  0.4 １ WET
FTX5L-BS 4 113 70 105 1.6 0.24   0.5 １ DRY
    1.9 WET
FTZ5L-BS 4.5 113 70 105 1.6 0.25   0.5 １ DRY
    1.9 WET
FTZ6V 5 113 70 105     2.1 0.5 １ WET
FTX7L-BS 6 113 70 130 2.1 0.33   0.7 １ DRY
    2.4 WET
FTX7A-BS 6 150 87 93 2.2 0.33   0.7 ２ DRY
    2.7 WET
FTZ7S 6 113 70 105     2.1 0.6 １ WET
FTZ8V 7 114 71 131     2.7 0.7 １ WET
FTX9-BS 8 150 87 105 2.6 0.41   0.9 ２ DRY
    3.0 WET
FTZ9-BS 9 150 87 105 2.7 0.47   0.9 ２ DRY
    3.3 WET
FTZ10S 8.6 150 87 93     3.2 0.9 ２ WET
FT12A-BS 10 150 87 105 2.9 0.47   1.2 ２ DRY
    3.6 WET
FTX12-BS 10 150 87 130 3.7 0.60   1.2 ２ DRY
    4.2 WET
FTZ12S 11 150 87 110   　 4.2 1.1 ２ WET
FTZ14S 11.2 150 87 110   　 4.1 1.1 ２ WET
FTX14-BS 12 150 87 145 3.8 0.69   1.4 ２ DRY
    4.6 WET
FTZ14-BS 14 150 87 145 4.1 0.72   1.4 ２ DRY
    5.0 WET
FTZ16-BS 18 150 87 161 5.0 0.82   1.8 ２ DRY
    6.1 WET
FTZ16-BS-1 18 150 87 161 5.0 0.82   1.8 ３ DRY
    6.1 WET

(Note)With Electrolyte (Wet Charged Type)

　　　Dry charged battery needs to be filled with specialized electrolytes before use.
